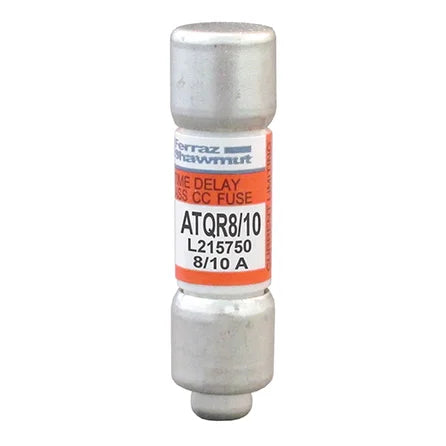

Mersen/Ferraz Shawmut ATQR 8/10 Amp-Trap 2000 Class CC Time-Delay Fuse, 0.8A 600V (Lot of 8)

The ATQR 8/10 is engineered with time-delay characteristics specifically suited for handling the high inrush currents typical of inductive equipment. Part of the Amp-Trap 2000 series, it provides superior current-limiting protection to prevent damage to sensitive branch circuits.

Key Features:

Transformer Duty: Optimized to withstand momentary startup surges without nuisance tripping.

Current Limiting: Highly effective at restricting peak let-through current during short circuits.

Rejection-Style Design: Physically configured to prevent the installation of incorrect fuse classes in Class CC fuse blocks.

Durable Build: Constructed with a fiberglass body for dimensional stability in harsh industrial environments.

Specifications (per fuse):

Amperage Rating: 0.8 Amps (8/10A).

Voltage Rating: 600 VAC (AC) and 300 VDC (DC).

Interrupt Rating: 200 kA at 600 VAC.

Size: 13/32" diameter x 1-1/2" length (10 x 38 mm).

Approvals: UL Listed to Standard 248-4 and CSA Certified.
