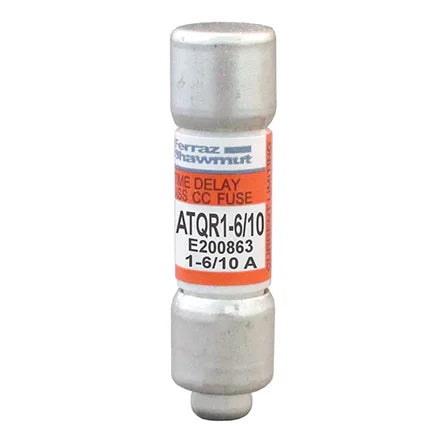

Mersen/Ferraz Shawmut ATQR 1-6/10 Amp-Trap 2000 Class CC Time-Delay Fuse, 1.6A 600V (Lot of 10)

This lot includes ten (10) high-performance ATQR 1-6/10 (1.6 Amp) Class CC fuses. These fuses are part of the Amp-Trap 2000® series and are specifically engineered for "transformer duty," providing specialized protection for control transformers, solenoids, and other inductive loads that encounter high inrush currents.

Key Features:

Time-Delay Characteristics: Formulated to withstand the momentary high startup surges of transformers without nuisance tripping, while ensuring superior protection against sustained overloads.

High Interrupting Capacity: Offers a high interrupting rating of 200kA at 600VAC, providing robust safety for critical branch circuits.

Rejection-Style Design: The unique physical dimensions (13/32" x 1-1/2") ensure that these fuses can only be used with Class CC fuse blocks, preventing the accidental installation of lower-rated fuse classes.

Industrial Quality: Built with a glass melamine body for excellent dimensional stability in harsh industrial environments and featuring a high-visibility orange label for quick identification.

Specifications (Per Fuse):

Amperage Rating: 1.6 Amps (1-6/10A).

Voltage Rating: 600VAC / 300VDC.

Interrupting Rating: 200kA at 600VAC; 100kA at 300VDC.

Compliance: UL Listed to Standard 248-4 and CSA Certified
