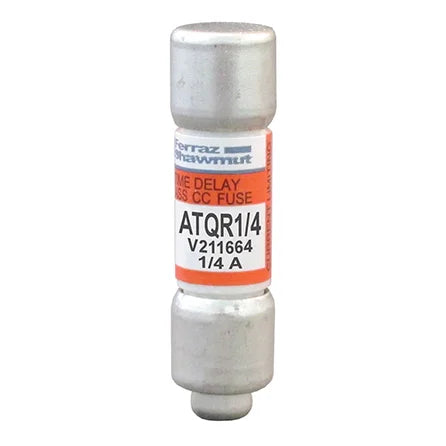

Mersen/Ferraz Shawmut ATQR 1/4 Amp-Trap 2000 Class CC Time-Delay Fuse - Lot of 8

This lot contains eight (8) high-quality ATQR 1/4 (0.25 Amp) Class CC fuses manufactured by Mersen (formerly known as Ferraz Shawmut). These fuses are specifically engineered for "transformer duty," providing optimal protection for control transformers, solenoids, and other inductive loads that experience high inrush currents upon startup.

Key Features:

Time-Delay Characteristics: Designed to withstand momentary startup surges without nuisance tripping while providing superior protection against sustained overloads.

High Interrupting Capacity: Safely interrupts fault currents up to 200,000 Amps at 600VAC.

Rejection-Style Design: The 13/32" x 1-1/2" physical dimensions ensure these fuses can only be used with Class CC fuse blocks, preventing the dangerous installation of lower-rated fuse classes.

Industrial Build: Constructed with a glass melamine body for excellent dimensional stability in harsh industrial environments and a high-visibility orange label for easy identification.

Specifications (Per Fuse):

Amperage: 1/4A (0.25A).

Voltage Rating: 600VAC / 300VDC.

Class: Class CC.
