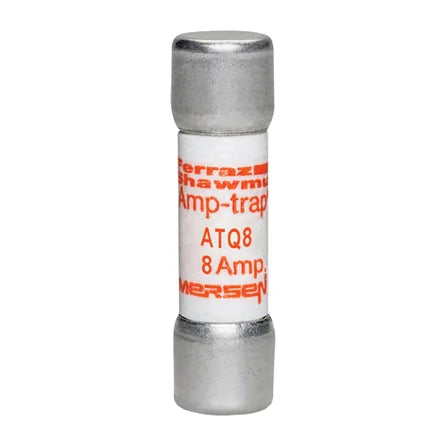

Mersen/Ferraz Shawmut ATQ 8 Amp-Trap 500V Midget Time-Delay Fuse - Lot of 10

This lot includes ten (10) high-performance ATQ 8 (8 Amp) midget fuses manufactured by Mersen (formerly known as Ferraz Shawmut). These fuses are part of the Amp-Trap® series and are specifically designed for the supplemental protection of circuits where time-delay characteristics are needed to handle high inrush currents.

Time-Delay Performance: Engineered with a 12-second time-delay at 200% of the rating, these fuses withstand momentary startup surges from small motors and other inductive loads without nuisance opening.

Voltage Rating: Provides reliable protection for AC circuits rated up to 500VAC.

Rugged Construction: Features a durable fiber body that ensures dimensional stability and long-term performance in various industrial environments.

Standard Midget Dimensions: The standard 13/32" x 1-1/2" (10mm x 38mm) size makes these fuses compatible with a wide range of standard midget fuse holders and blocks.

Technical Specifications (Per Fuse):

Amperage: 8 Amps.

Voltage: 500VAC.

Interrupting Rating: 10kA at 500VAC.

Compliance: UL Listed to standard 248-14 and CSA Certified.
