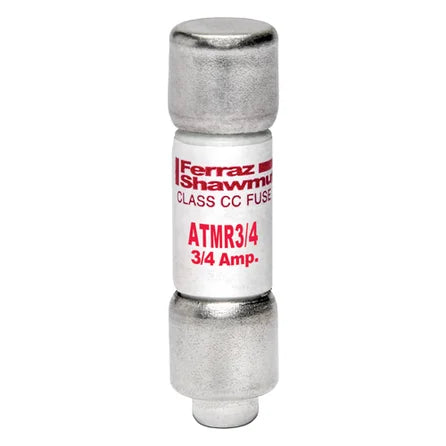

Mersen/Ferraz Shawmut ATMR 3/4 Amp-Trap 2000 Class CC Fast-Acting Fuse, 600VAC/DC - Lot of 14

This lot contains fourteen (14) high-performance ATMR 3/4 (0.75 Amp) Class CC fuses manufactured by Mersen (formerly Ferraz Shawmut). Part of the Amp-Trap 2000® series, these fast-acting fuses are the smallest 600VAC/DC industrial-grade fuses available, providing highly effective protection for general-purpose branch circuits and non-inductive loads.

Fast-Acting Performance: Engineered for rapid response to short circuits and overloads, making them ideal for protecting control circuits, lighting, and heating loads.

Superior Current Limitation: Effectively restricts peak let-through current to protect downstream circuit components from the destructive effects of high fault currents.

Rejection-Style Design: Features a specialized physical configuration (13/32" x 1-1/2") that ensures only a Class CC fuse can be installed in a Class CC fuse block, preventing the use of lower-rated or incorrect fuse classes.

Rugged Industrial Build: Constructed with a glass melamine body for exceptional dimensional stability and durability in harsh industrial environments.

High Visibility: Labeled with a distinct orange color coding for quick identification in crowded control panels.

Specifications (Per Fuse):

Amperage: 3/4A (0.75A)

Voltage Rating: 600VAC / 600VDC

Interrupting Rating: 200kA at 600VAC; 100kA at 600VDC

Compliance: UL Listed to standard 248-4 and CSA Certified
