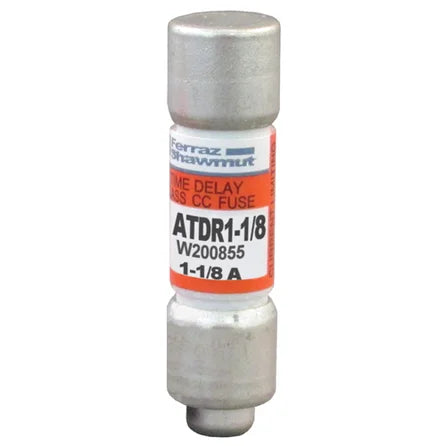

Mersen/Ferraz Shawmut ATDR1-1/8 | Amp-Trap 2000 Class CC Time-Delay Fuse, 1.125A 600V (Lot of 8)

The ATDR1-1/8 is an industrial-grade Class CC fuse engineered to provide superior protection for small motors and sensitive branch circuits. Its dual-element, time-delay design allows it to handle momentary inrush currents from motor startups without nuisance tripping.

Motor Duty Performance: Specifically designed for motor-related applications, offering "no-damage" IEC Type 2 protection for increasingly sensitive industrial components.

Safety & Rejection: Features a rejection-style cylindrical body that ensures only a Class CC fuse can be installed in a corresponding Class CC holder, preventing dangerous mis-matching.

Highly Durable: Constructed with a fiberglass body for dimensional stability in harsh, high-temperature industrial environments.

Key Specifications (per fuse):

Amperage Rating: 1.125 Amps (1-1/8A).

Voltage Rating: 600 VAC (AC) and 300 VDC (DC).

Interrupting Rating: 200 kA at 600 VAC.

Body Dimensions: 13/32" Diameter x 1-1/2" Length (Standard Class CC).

Certification: UL Listed (Standard 248-4) and CSA Certified.
