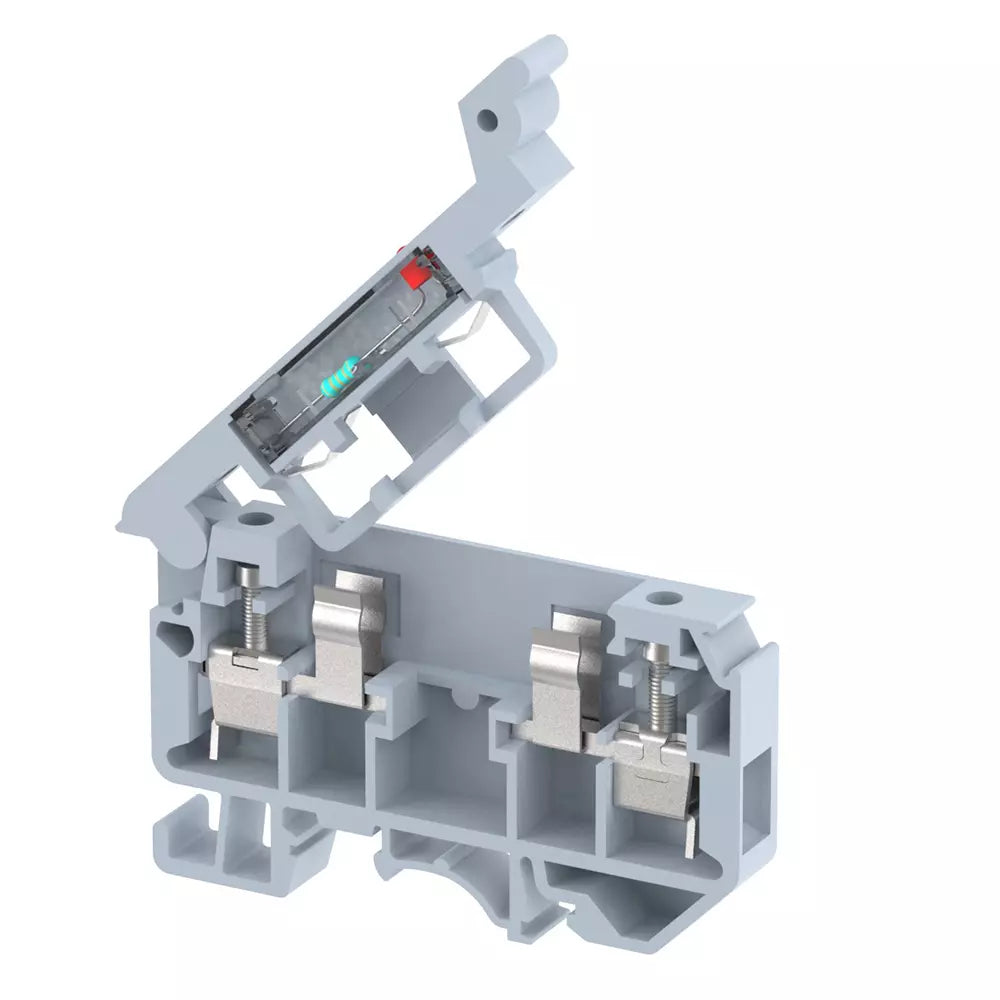

Elmex KUFH 4D fuse terminal block (with LED Indication) lot of 12

Elmex KUFH 4D fuse terminal block (with LED Indication) lot of 12

Part Number:

  • Type of Product: Fuse Terminal Block (with LED Indication)
  • Connection Type: Screw Clamp (MS Screw Clamp)
  • Rated Voltage: 800 V (IEC 60947-7-1)
  • Rated Current: 12 A (IEC 60947-7-1)
  • Rated Cross Section: 4 sq. mm
  • Wire Size (AWG): 24 AWG to 10 AWG (UL/CSA ratings)
  • Wire Stripping Length: 12 mm
  • Torque: 0.5 Nm
  • Housing Material: Polyamide 6.6
  • Width: 9 mm
  • Fuse Size Held: Accommodates a glass cartridge fuse (e.g., 5mm x 20mm or 5mm x 25mm)
$50.00
